Name: 100kw 125kva 110kw 138kva Slient Diesel Generator for Factory Sale with Chinese Brand YTO with CE Certification
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: YTO LR6A3L-D
Price: 5,850.00 USD
Availability: InStock

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Resaltar:

100kw silent diesel generator with CE certification

125kva silent diesel generator for factory

110kw YTO diesel generator with warranty

Información básica

Lugar de origen: Porcelana

Nombre de la marca: YTO

Número de modelo: YTO LR6A3L-D

Pago y Envío Términos

Detalles de empaquetado: 275*104*148cm

Tiempo de entrega: 30 DÍAS LABORALES

Condiciones de pago: LC, T/T, D/P

Capacidad de la fuente: 500 unidades por mes

Galería

100kw 125kva 110kw 138kva Slient Diesel Generator for Factory Sale with Chinese Brand YTO with CE Certification

Descripción de producto

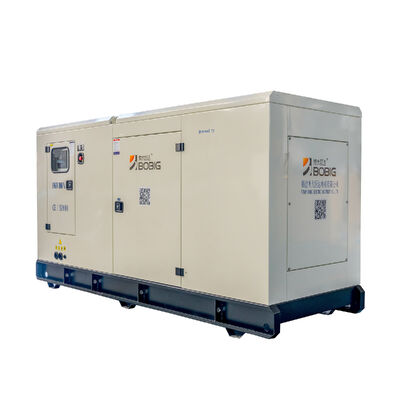

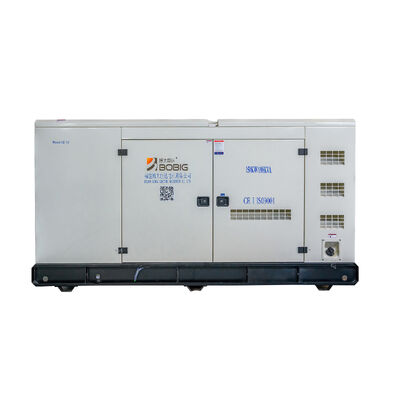

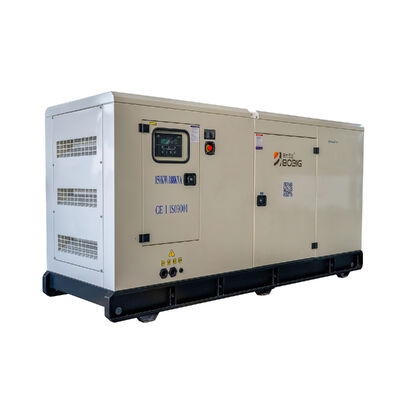

100KW 125KVA Silent Diesel Generator with YTO Engine & CE Certification

Product Overview

Our YTO LR6A3L-D Diesel Generator is a high-performance, heavy-duty generator set designed for reliable prime and standby power. Engineered with the renowned YTO engine, this 100kW unit is encased in a robust soundproof canopy, making it ideal for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.

Technical Specifications

General Information	Prime Power	Standby Power
Rated Power (kVA)	125	138
Power Rating (kW)	100	110
Frequency (Hz)	50
Engine Model	LR6A3L-D
Engine Speed (RPM)	1500
Phase	3
Power Factor (PF)	0.8
Control System	Digital
Rated Voltage (V)	400/230 (Customizable)
Fuel Tank Capacity Operating Time	≥ 8 hours @ 75% load

PRP Prime Power: Available for unlimited annual hours in variable load applications according to GB/T2820-97. Includes 10% overload capability for 1 hour within 12 hours of operation.

ESP Standby Power: Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available.

Dimension and Weight	BYT138 (Open Type)	BYT138S (Silent Type)
Length (L) mm	2350	2950
Width (W) mm	800	1040
Height (H) mm	1580	1480
Tank Capacity (L)	230	230

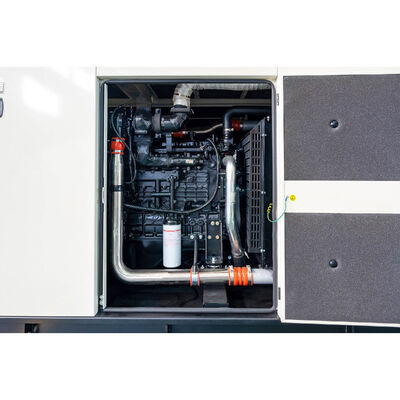

Engine Specifications

Engine Model & Manufacturer	LR6A3L-D (YTO)
Number of Cylinders	6
Cylinder Arrangement	In-line
Cycle	4 stroke, compression ignition
Air Aspiration Method	Turbocharged with air-air intercooler
Cooling Medium	Liquid
Bore	105 mm
Stroke	125 mm
Compression Ratio	17.0:1
Cubic Capacity	6.49 L
Dry Engine Weight	665 kg
Dimension (L×W×H)	1081 × 1456 × 708 mm
Rotation Direction	Anti-clockwise viewed on flywheel
Governed Engine Speed	1500 RPM
Firing Order	1-3-4-2 (1 cylinder furthest from flywheel)
Steady State Speed Stability	3%

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-274D
Alternator Rated Power	100kW / 125kVA
Rated Voltage	230V / 400V
Rated Frequency	50Hz
Connecting Type	3 Phase and 4 Wire
Number of Bearings	1
Protection Grade	IP23
Altitude	≤ 1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
Telephone Influence Factor (TIF)	≤ 50
THF	≤ 2%
Voltage Regulation, Steady State	≤ ±1%
Specific Fuel Consumption	≤ 202g/kW·h
Transient State Voltage	≤ -15% ~ +20%

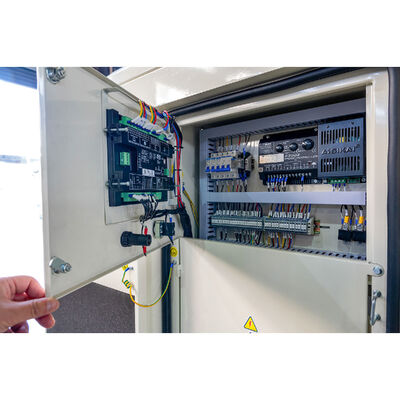

Control Panel - DSE 6120

Key Benefits

Automatically transfers between mains (utility) and generator
Hours counter for accurate monitoring and maintenance
User-friendly set-up and button layout
Multiple parameters monitored & displayed simultaneously
Configurable for wide range of applications
PLC editor for user configurable functions

Key Features

4-line back-lit LCD text display
Multiple display languages
Five-key menu navigation
LCD alarm indication
Customizable power-up text and screen images
DSENet® expansion compatibility
Data logging facility
Internal PLC editor
Protections disable feature
Fully configurable via PC using USB communications
3-phase generator sensing and protection
Automatic load transfer control
Generator current and power monitoring (kW, kvar, kVA, pf)
kW overload alarm and over current protection
Breaker control via fascia buttons
Real time clock and engine run-time scheduler
IP65 rating (with optional gasket)

Available Options

Engine

Water Jacket Preheater
Oil Preheater
Oil manual pump

Alternator

PMG excitation
Space heater
Winding temperature measuring

Fuel System

12/24 hour base tank
Bunded fuel tank
External fuel tank
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)

Generating Set

Deepsea, ComAp, Smartgen etc. controller
Trailer
Tools with the machine

Additional Product Images
