Container Silent Diesel Generators Set 1100kW 1375KVA Power Capacities Genset Generator Portable Durable Original Engine Cummi

Container Silent  Diesel Generators Set 1100kW 1375KVA Power Capacities Genset Generator Portable Durable Original Engine Cummi
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Toldo: Personalizado
Garantía: 12 meses/1000 horas
Tipo: Silencioso (súper silencioso) o abierto, silencioso, etc., en línea/6 cilindros/4 tiempos/4 válvulas
Panel de control: Pantalla digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Tipo de salida: CA monofásica/trifásica
Controlador: Mar profundo/Smartgen/etc.
Solicitud: Banco industrial, etc.
Tensión nominal: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternador: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford o Newtec, Engga
Nombre del producto: Generador diésel, generador de 1375KVA, impulsado por el generador diésel CUMMIN S, generador diésel
Color: Requisito de los clientes
Frecuencia: 50/60Hz
Potencia nominal: 1100KW
Motor: COMINO S original
método de enfriamiento: Sistema de refrigeración por agua
Resaltar:

silent diesel generator 1100kW

,

portable cummins genset durable

,

1375KVA diesel generator original engine

Información básica
Lugar de origen: Porcelana
Nombre de la marca: CUMMIN S
Certificación: CE
Número de modelo: Se trata de un sistema de control de las emisiones.
Pago y Envío Términos
Detalles de empaquetado: Envoltura de burbujas
Tiempo de entrega: 30 dias
Capacidad de la fuente: 500 unidades por mes
Descripción de producto
1100kW 1375KVA BOBIG CUMMIN S Diesel Generator (Model: KTA50-G8)

Our 1100kW 1375KVA BOBIG CUMMIN S diesel generator (Model: KTA50-G8) is designed to provide reliable power for a wide range of applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance

Rated Power: With a rated power of 1100kW (1375KVA), it can meet the power needs of various industrial, commercial, and residential applications. The prime power output is stable and efficient, ensuring continuous operation even under heavy loads.

Frequency: The generator operates at a standard frequency of 50Hz, which is suitable for most electrical equipment in the market.

Engine Excellence

Engine Model: Powered by the KTA50-G8 CUMMIN S engine, it combines advanced technology and high-quality manufacturing. The engine is known for its high torque, fuel efficiency, and low emissions.

Engine Speed: Running at 1500 RPM, it provides a smooth and consistent power supply while minimizing wear and tear on the engine components.

Technical Specifications
General Information
ParameterPrime PowerStandby Power
Rated Power (kVA)13751513
Power Rating (kW)11001210
Frequency (Hz)50
Engine ModelKTA50-G8
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230 (customizable)
Fuel Tank Capacity Operating Time≥ 8h @ 75% load
Dimension and Weight
ModelBC1100 (Open Type)BC1375S (Silent Type)
Length (mm)56006100
Width (mm)21502250
Height (mm)25503050
Tank Capacity (L)25302530
Engine Specifications
Engine Model & ManufacturerKTA50-G8 (Cummin s)
Number of Cylinders16
Cylinder ArrangementIn-line
CycleFour Stroke
AspirationTurbocharged and Low Temperature Aftercooled
Bore x Stroke159 x 159 mm
Displacement50.3 L
Compression Ratio14.9:1
Prime Power/Speed1200 kW/1500 rpm
Standby Power/Speed1333 kW/1500 rpm
Fuel SystemCummin s PT
Cooling SystemForce Water Cooling Cycle
Total Lubrication System Capacity47 L
Coolant Capacity (engine only)43.5 L
Fuel Consumption @ 100% Load197 g/kWh @1500 rpm
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-454B
Alternator Rated Power1100kw/1375kva
Rated Voltage230v/400v
Rated Frequency50hz
Connecting Type3 Phase and 4 W
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Voltage Regulation, Steady State≤±1%
Environmental Adaptability

Ambient Temperature: It can operate effectively in an ambient temperature range of +5°C to +40°C.

Altitude: The generator is suitable for use at altitudes of up to 1000m. Customized solutions available for different environmental conditions.

Applications
  • Industrial Use: Backup power source for factories, ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels to maintain essential services
  • Residential Areas: Reliable power for communities in areas with unstable power grids
Customization & Services

We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller. Engine, generator, and controller options are available.

Warranty

BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues.

Product Images

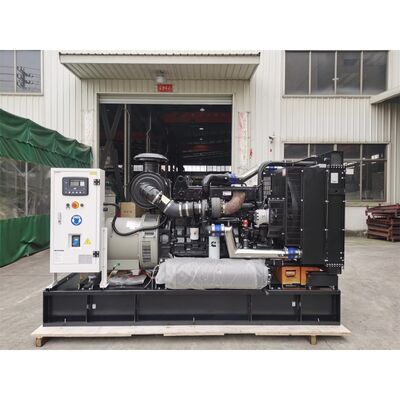

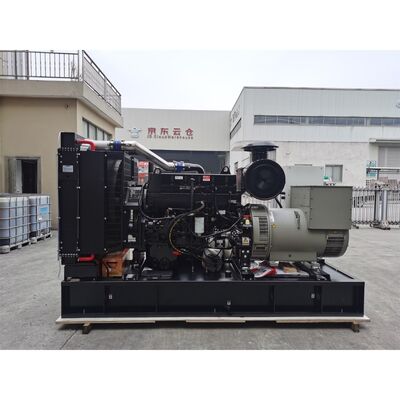

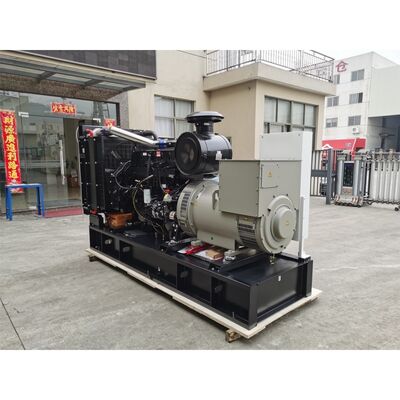

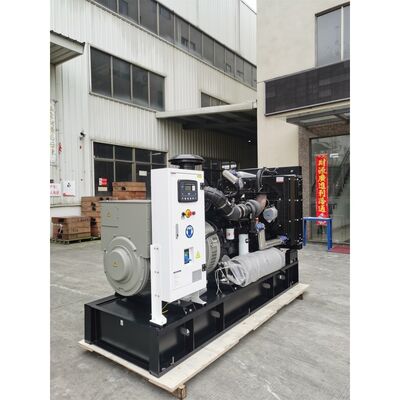

BOBIG CUMMIN S Diesel Generator 1100kW 1375KVA
Certifications
Product Certification 1 Product Certification 2
Why Choose BOBIG
  • Brand Reputation: CUMMIN S is a well-known and trusted brand in the diesel generator industry
  • Quality Assurance: Manufactured in strict accordance with international standards with rigorous quality inspections
  • Customization Options: Tailored solutions based on your specific requirements
  • Professional Support: 24/7 technical support, maintenance, and repair services
