Factory Price 650KW/812.5KVA Silent Diesel Generator Set Powered by WEICHAI Engine for Factory and Workshop

1
MOQ
46722-58650USD
Precio
Factory Price 650KW/812.5KVA Silent Diesel Generator Set Powered by WEICHAI Engine for Factory and Workshop
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Resaltar:

650KW silent diesel generator

,

Weichai diesel generator set

,

812.5KVA workshop generator
Información básica
Lugar de origen: Porcelana
Nombre de la marca: WEICHAI
Certificación: ISO 9001
Número de modelo: El número de unidades de carga de las unidades de carga de las unidades de carga
Pago y Envío Términos
Detalles de empaquetado: 560*220*255cm
Tiempo de entrega: 30 días laborables
Capacidad de la fuente: 500 unidades por mes
Descripción de producto
650KW/812.5KVA Silent Diesel Generator Set
Our Weichai 12M26D792E200 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned Weichai engine, this 650kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.

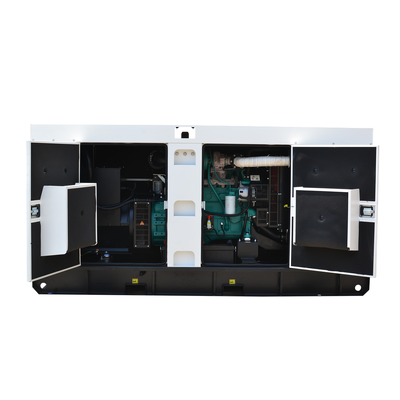

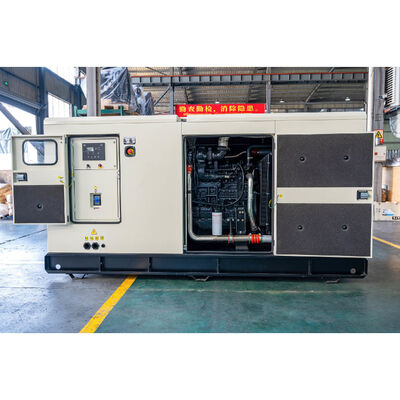

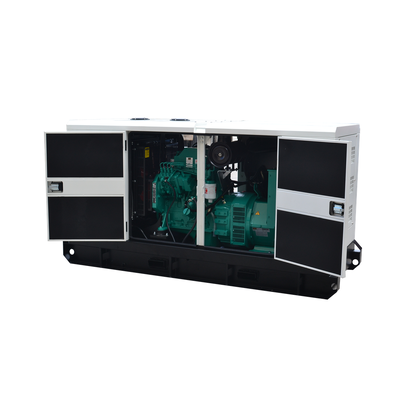

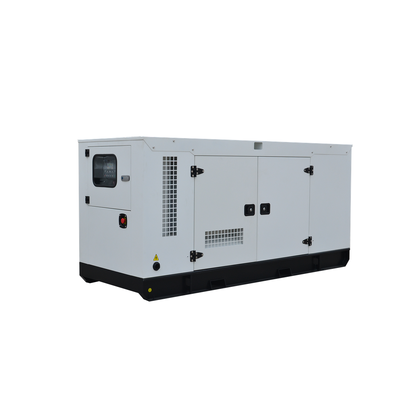

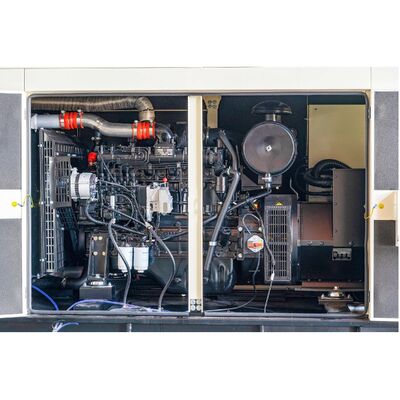

Weichai 650KW diesel generator set exterior view Weichai 650KW diesel generator set side view Weichai 650KW diesel generator set internal components
Power Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 813 894
Power Rating (kW) 650 715
Frequency (Hz) 50
Engine Model 12M26D792E200
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BWC894 (Open Type) BWC894S (Silent Type)
Length (L) mm 4500 5600
Width (W) mm 1800 2200
Height (H) mm 2745 2550
Tank Capacity (L) 1495 1495
Engine Specifications
Engine Model & Manufacturer 12M26D792E200 (WEICHAI)
Emission Certification ----
Number of Cylinders 12
Cylinder Arrangement V-Type
Aspiration Turbocharging and intercooling
Bore x Stroke 150 x 150 mm
Cubic Capacity 31.8 L
Compression Ratio 15.7:1
Prime Power / Speed 720 kW/1500 rpm
Standby Power / Speed 800 kW/1500 rpm
Governor Type Mechanical pump
Cooling System Force Water Cooling Cycle
Transient Frequency Deviation -0.833333333
Total Lubrication System Capacity 109 L
Coolant Capacity (Engine Only) 83 L
Fuel Consumption @ 100% Load 720 g/kWh @1500 rpm
Starter Motor DC 24V
Charge Alternator DC 24V
Control Panel - DSE 6120
Auto start and auto mains failure control module (Alternator frequency & CAN speed sensing)
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
DSE 6120 control panel display and interface
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12 / 24 hour base tank Deepsea, ComAp, Smartgen etc. controller
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
Weichai diesel generator set installation view Weichai diesel generator set operational view
