Factory Portable 280kW 350KVA Home-use Small Power 3phase Power Generator 3 Phase Super Silent Diesel Generator Set Cumm

Factory Portable 280kW 350KVA Home-use Small Power 3phase Power Generator 3 Phase Super Silent Diesel Generator Set Cumm
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Toldo: Personalizado
Garantía: 12 meses/1000 horas
tipo: Silencioso (súper silencioso) o abierto, silencioso, etc., en línea/6 cilindros/4 tiempos/4 válvulas
Panel de control: Pantalla digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Tipo de salida: CA monofásica/trifásica
Controlador: Mar profundo/Smartgen/etc.
Solicitud: Banco industrial, etc.
Tensión nominal: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternador: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford o Newtec, Engga
Nombre del producto: Generador diésel, generador de 350 KVA, impulsado por el generador diésel CUMMIN S, generador diésel
Color: Requisito de los clientes
Frecuencia: 50/60HZ
Potencia nominal: 280Kw
Motor: COMINO S original
método de enfriamiento: Sistema de refrigeración por agua
Resaltar:

280kW silent diesel generator

,

350kVA 3phase power generator

,

home-use Cummins diesel generator
Información básica
Lugar de origen: Porcelana
Nombre de la marca: CUMMIN S
Certificación: CE
Número de modelo: En el caso de los productos enumerados en el anexo II.
Pago y Envío Términos
Detalles de empaquetado: Envoltura de burbujas
Tiempo de entrega: 30 dias
Capacidad de la fuente: 500 unidades por mes
Descripción de producto

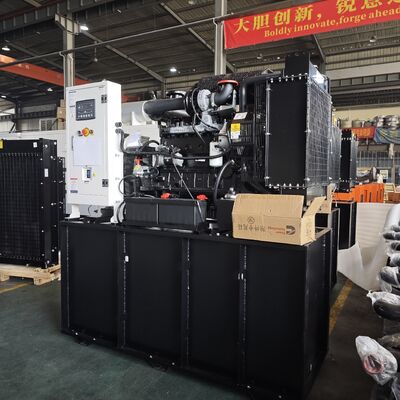

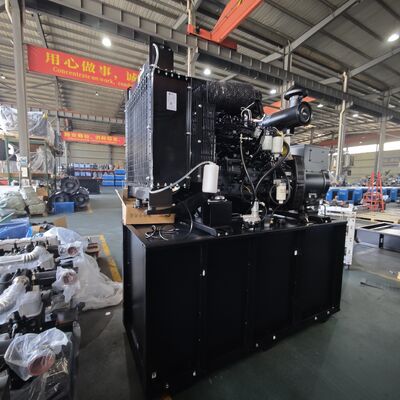

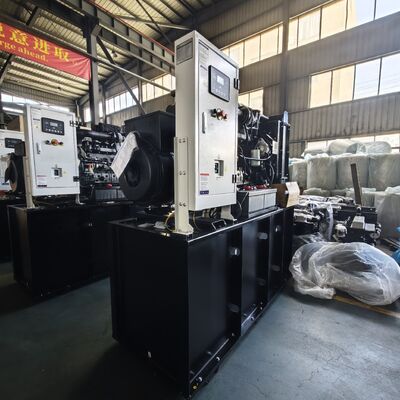

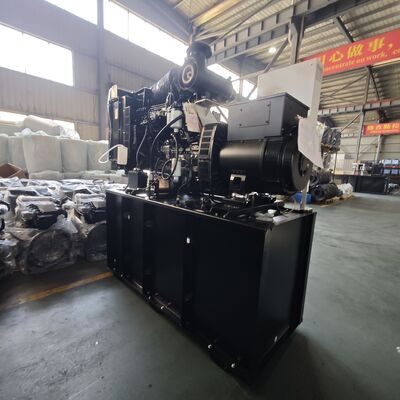

280kW 350KVA BOBIG CUMMIN S Diesel Generator
Model: NTA855-G2A - Reliable Power Solution
Product Overview
Our 280kW 350KVA BOBIG CUMMIN S diesel generator (Model: NTA855-G2A) is engineered to deliver reliable power for diverse applications. Backed by the renowned CUMMIN S brand, it offers superior performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 280kW (350KVA) for industrial, commercial, and residential applications
  • Frequency: 50Hz standard operation suitable for most electrical equipment
  • Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
Engine Excellence
  • Engine Model: NTA855-G2A CUMMIN S engine with advanced technology
  • Engine Speed: 1500 RPM for smooth, consistent power supply
  • Features: High torque, fuel efficiency, and low emissions
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 350 385
Power Rating (kW) 280 308
Frequency (Hz) 50
Engine Model NTA855-G2A
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power available for unlimited annual hours in variable load applications according to GB/T2820-97; 10% overload capability available for 1 hour within 12-hour operation
ESP: Standby power rating applicable for emergency power supply during utility interruptions
Dimensions and Weight
Model BC385 (Open Type) BC385S (Silent Type)
Length (mm) 3050 4200
Width (mm) 1140 1500
Height (mm) 1880 2100
Tank Capacity (L) 644 644
Engine Specifications
Engine Model & Manufacturer NTA855-G2A (Cummins)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four stroke
Aspiration Turbocharged & Aftercooled
Bore x Stroke 140 x 152 mm
Displacement 14 L
Compression Ratio 15.0:1
Prime Power/Speed 312 kW/1500 rpm
Standby Power/Speed 347 kW/1500 rpm
Fuel System PT
Cooling System Force Water Cooling Cycle
Total Lubrication System Capacity 36 L
Coolant Capacity (Engine Only) 20.8 L
Fuel Consumption @ 100% Load 191 g/kWh @1500 rpm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314ES
Alternator Rated Power 280kw/350kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Voltage Regulation, Steady State ≤±1%
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Quality Certifications
Our generator complies with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification.
Quality Certification 1 Quality Certification 2
Customization & Services
  • Customization and OEM services available with design drawings
  • Standard DSE 6120 controller included (engine, generator, and controller options available)
  • One-year or 1000-hour warranty (whichever comes first)
  • 24/7 professional after-sales technical support
Environmental Specifications
  • Ambient Temperature: +5°C to +40°C operating range
  • Altitude: Suitable for use up to 1000m
  • Customized solutions available for different environmental conditions
