Factory Durable and Rust-proof Canopy Silent Diesel Generator Set 220kW 275KVA Power Genset for Sale Engine CUMMIN

Factory Durable and Rust-proof Canopy Silent Diesel Generator Set 220kW 275KVA Power Genset for Sale Engine CUMMIN
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Toldo: Personalizado
Garantía: 12 meses/1000 horas
tipo: Silencioso (súper silencioso) o abierto, silencioso, etc., en línea/6 cilindros/4 tiempos/4 válvulas
Panel de control: Pantalla digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Tipo de salida: CA monofásica/trifásica
Controlador: Mar profundo/Smartgen/etc.
Solicitud: Banco industrial, etc.
Tensión nominal: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternador: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford o Newtec, Engga
Nombre del producto: Generador diésel, generador de 220kW, accionado por el generador diésel CUMMIN S, generador diésel d
Color: Requisito de los clientes
Frecuencia: 50/60HZ
Potencia nominal: 220kw
Motor: COMINO S original
método de enfriamiento: Sistema de refrigeración por agua
Resaltar:

Cummins diesel generator 220kW

,

silent diesel genset 275KVA

,

rust-proof canopy generator set
Información básica
Lugar de origen: Porcelana
Nombre de la marca: CUMMIN S
Certificación: CE
Número de modelo: 6LTAA9.5-G3
Pago y Envío Términos
Detalles de empaquetado: Envoltura de burbujas
Tiempo de entrega: 30 dias
Capacidad de la fuente: 500 unidades por mes
Descripción de producto
220kW 275KVA BOBIG CUMMIN S Diesel Generator Set
Our 220kW 275KVA BOBIG CUMMIN S diesel generator (Model: 6LTAA9.5-G3) is designed to provide reliable power for a wide range of industrial, commercial, and residential applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 220kW (275KVA) for various industrial, commercial, and residential applications
  • Prime power output is stable and efficient, ensuring continuous operation under heavy loads
  • Standard frequency of 50Hz suitable for most electrical equipment
Engine Excellence
  • Powered by 6LTAA9.5-G3 CUMMIN S engine with advanced technology
  • High torque, fuel efficiency, and low emissions
  • Operating speed: 1500 RPM for smooth and consistent power supply
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 275 303
Power Rating (kW) 220 242
Frequency (Hz) 50
Engine Model 6LTAA9.5-G3
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Dimensions and Weight
Model BC303 (Open Type) BC303S (Silent Type)
Length (mm) 2850 3950
Width (mm) 1110 1400
Height (mm) 2100 1950
Tank Capacity (L) 506 506
Engine Specifications
Engine Model & Manufacturer 6LTAA9.5-G3 (Cummins)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharged & Charge Air Cooled
Bore x Stroke 116.5 x 148 mm
Displacement 9.5 L
Compression Ratio 16.6:1
Prime Power/Speed 250 kW/1500 rpm
Standby Power/Speed 278 kW/1500 rpm
Fuel System Mechanical fuel pump and Electronic Governor
Cooling System Force Water Cooling Cycle
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314CS
Alternator Rated Power 220kw/275kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Protection Grade IP23
Insulation Class H class
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
  • Residential Areas: Reliable power for communities with unstable power grids
Customization & Services
  • We support customization and OEM services with design drawings
  • All units equipped with standard DSE 6120 controller
  • Engine, generator, and controller options available
  • One-year or 1000-hour warranty (whichever comes first)
  • Professional after-sales service team available 24/7
Product Images

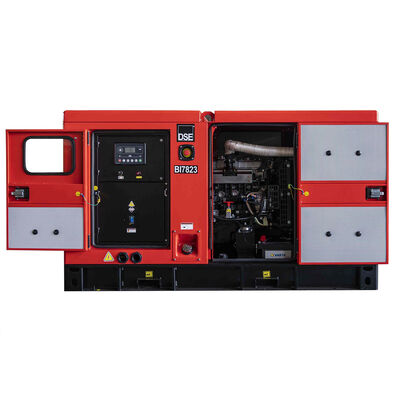

BOBIG CUMMIN S Diesel Generator Set Control Panel
Certifications
BOBIG Generator Quality Certification
BOBIG Generator International Standards Certification
Why Choose BOBIG
  • Brand Reputation: Cummins is a trusted brand with long history of quality products
  • Quality Assurance: Manufactured according to international standards with rigorous inspections
  • Customization Options: Tailored solutions based on specific requirements
  • Comprehensive Support: Technical support, maintenance, and repair services available
