Industrial Diesel Generator Power Open/Silent Portable Diesel Generator for Home Small Power Cummin s Genset 60kW 75KVA

Industrial Diesel Generator Power Open/Silent Portable Diesel Generator for Home Small Power Cummin s Genset 60kW 75KVA
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Toldo: Personalizado
Garantía: 12 meses/1000 horas
tipo: Silencioso (súper silencioso) o abierto, silencioso, etc., en línea/6 cilindros/4 tiempos/4 válvulas
Panel de control: Pantalla digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Tipo de salida: CA monofásica/trifásica
Controlador: Mar profundo/Smartgen/etc.
Solicitud: Banco industrial, etc.
Tensión nominal: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternador: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford o Newtec, Engga
Nombre del producto: Generador diésel, generador de 60kW, impulsado por el generador diésel CUMMIN S, generador diésel de
Color: Requisito de los clientes
Frecuencia: 50/60HZ
Potencia nominal: 60kW
Motor: COMINO S original
método de enfriamiento: Sistema de refrigeración por agua
Resaltar:

60kW Cummins diesel generator

,

portable diesel generator for home

,

silent Cummins genset 75KVA
Información básica
Lugar de origen: Porcelana
Nombre de la marca: CUMMIN S
Certificación: CE
Número de modelo: 4BTA3.9-G11
Pago y Envío Términos
Detalles de empaquetado: Envoltura de burbujas
Tiempo de entrega: 30 dias
Capacidad de la fuente: 500 unidades por mes
Descripción de producto
60kW 75KVA BOBIG CUMMIN S Diesel Generator
Our 60kW 75KVA BOBIG CUMMIN S diesel generator (Model: 4BTA3.9-G11) provides reliable power for industrial, commercial, and residential applications. Built with the renowned CUMMIN S engine, it delivers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 60kW (75KVA) for various applications
  • Stable prime power output for continuous operation
  • Standard frequency: 50Hz suitable for most equipment
Engine Excellence
  • Engine Model: 4BTA3.9-G11 CUMMIN S
  • High torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth operation
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 75 83
Power Rating (kW) 60 66
Frequency (Hz) 50
Engine Model 4BTA3.9-G11
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity ≥ 8h @ 75% load
Dimensions and Weight
Model BC83 Open Type BC83 Silent Type
Length (mm) 1880 2450
Width (mm) 770 970
Height (mm) 1400 1250
Tank Capacity (L) 138 138
Engine Specifications
Engine Model & Manufacturer 4BTA3.9-G11 (Cummins)
Number of Cylinders 4
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharger & Aftercooler
Bore x Stroke 102 x 120 mm
Displacement 3.9 L
Compression Ratio 17.3:1
Fuel System BYC PB/Electronic Governor
Cooling System Force Water Cooling Cycle
Fuel Consumption @ 100% Load 208 g/kWh @1500 rpm
Alternator Specifications
Alternator Brand Leroy Somer
Alternator Model TAL-A42-C
Rated Power 60kW/75kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Protection Grade IP23
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating
Insulation Class H class
Voltage Regulation, Steady State ≤±1%
Customization & OEM Services
We support customization and OEM services with design drawings. All units feature original power supplies and standard DSE 6120 controller (engine, generator, and controller are optional).
Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Power for offices, malls, and hotels maintaining essential services
  • Residential Areas: Reliable power for communities with unstable grids
Warranty & Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). Free replacement of easy-damageable spare parts during warranty period. Professional after-sales service available 24/7.

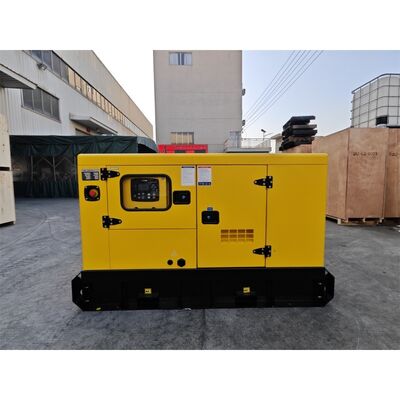

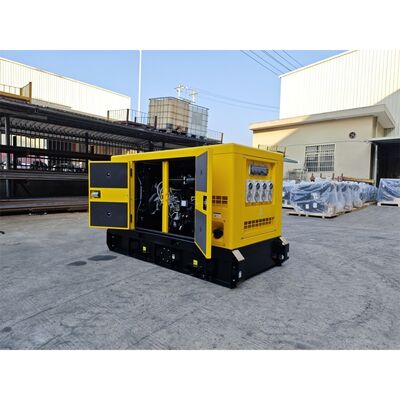

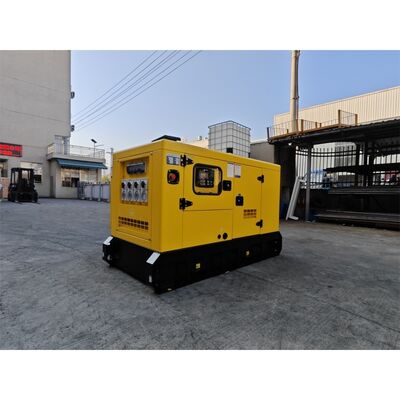

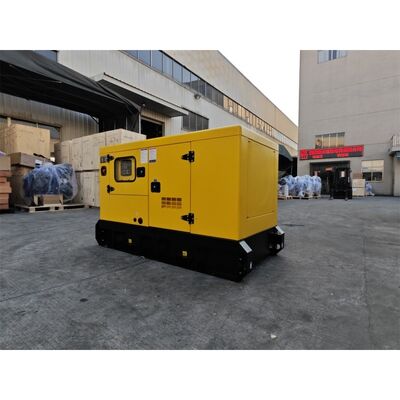

Product Image
Industrial Diesel Generator Power Open/Silent Portable Diesel Generator for Home Small Power Cummin s Genset 60kW 75KVA 0
Certifications
Industrial Diesel Generator Power Open/Silent Portable Diesel Generator for Home Small Power Cummin s Genset 60kW 75KVA 1
Industrial Diesel Generator Power Open/Silent Portable Diesel Generator for Home Small Power Cummin s Genset 60kW 75KVA 2
