320kW 400kVA Silent Generator Set with Shangchai SDEC Engine & Original Stamford Alternator, 3-Phase 50/60Hz, OEM Customization

320kW 400kVA Silent Generator Set with Shangchai SDEC Engine & Original Stamford Alternator, 3-Phase 50/60Hz, OEM Customization
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Toldo: Personalizado
Garantía: 12 meses/1000 horas
Tipo: Silencioso (súper silencioso) o abierto, silencioso, etc., en línea/6 cilindros/4 tiempos/4 válvulas
Panel de control: Pantalla digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Tipo de salida: CA monofásica/trifásica
Controlador: Mar profundo/Smartgen/etc.
Solicitud: Banco industrial, etc.
Tensión nominal: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternador: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford o Newtec, Engga
Nombre del producto: Generador diésel, generador de 400kVA, accionado por generador diésel SDEC, generador diésel de pote
Color: Requisito de los clientes
Frecuencia: 50/60Hz
Potencia nominal: 320kw
Motor: SDEC original
método de enfriamiento: Sistema de refrigeración por agua
Resaltar:

320kW silent diesel generator

,

400kVA SDEC generator set

,

Shangchai SDEC engine alternator
Información básica
Lugar de origen: Porcelana
Nombre de la marca: SDEC
Certificación: CE
Número de modelo: SC13E550D2
Pago y Envío Términos
Detalles de empaquetado: Envoltura de burbujas
Tiempo de entrega: 30 días laborables
Capacidad de la fuente: 500 unidades por mes
Descripción de producto

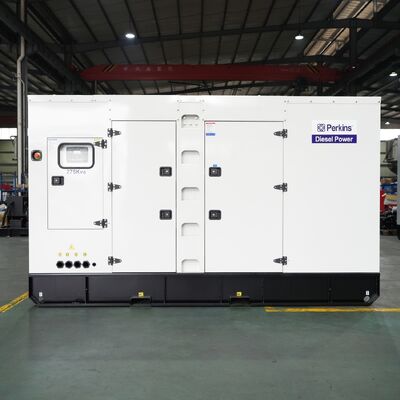

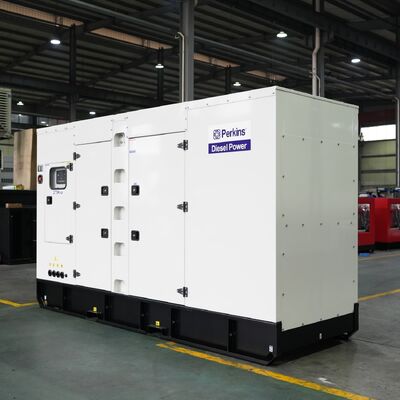

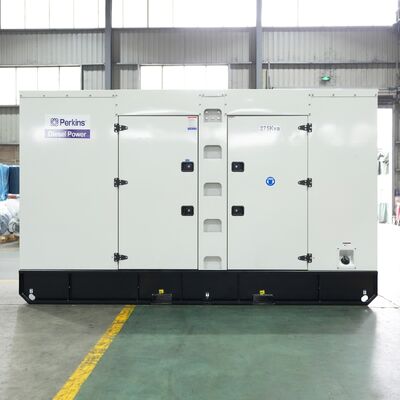

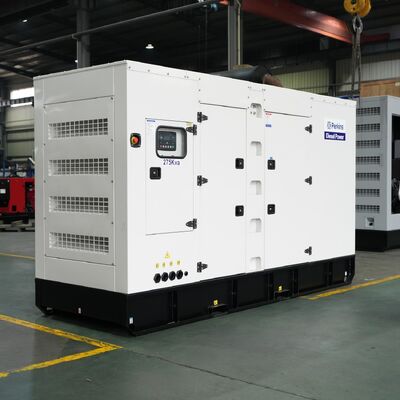

320kW 400kVA Silent Generator Set
Our 320kW 400KVA BOBIG SDEC diesel generator (Model: SC13E550D2) provides reliable power for industrial, commercial, and residential applications. Backed by the renowned SDEC brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 320kW (400KVA) for various industrial, commercial, and residential applications
  • Frequency: 50Hz operation suitable for most electrical equipment
  • Stable prime power output ensuring continuous operation under heavy loads
Engine Excellence
  • Engine Model: SC13E550D2 SDEC engine with advanced technology
  • Engine Speed: 1500 RPM for smooth and consistent power supply
  • High torque, fuel efficiency, and low emissions
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 400 440
Power Rating (kW) 320 352
Frequency (Hz) 50
Engine Model SC13E550D2
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power available for unlimited annual hours in variable load applications according to GB/T2820-97; 10% overload capability available for 1 hour within 12-hour operation.
ESP: Standby power rating for emergency power supply during utility interruptions.
Dimensions and Weight
Model BSD440 (Open Type) BSD440S (Silent Type)
Length (mm) 3440 4200
Width (mm) 1350 1400
Height (mm) 2460 2120
Tank Capacity (L) 736 736
Engine Specifications
Engine Model & Manufacturer SC13E550D2 (SDEC)
Engine Type In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion Type Direct injection
Cylinder Type Wet cylinder liner
Number of Cylinders 6
Bore × Stroke 130 × 161 mm
Displacement 12.8 lit.
Compression Ratio 17 : 1
Firing Order 1-5-3-6-2-4
Fuel Injection Advance Angle 14°BTDC
Dry Weight 1164 kg
Dimension 1856×1000×1354mm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314FS
Alternator Rated Power 320kw/400kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Environmental Adaptability
  • Ambient Temperature: +5°C to +40°C operating range
  • Altitude: Suitable for use up to 1000m
  • Customized solutions available for different environmental conditions
Quality Standards
Our generator complies with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications, guaranteeing quality, safety, and reliability.
Customization & OEM Services

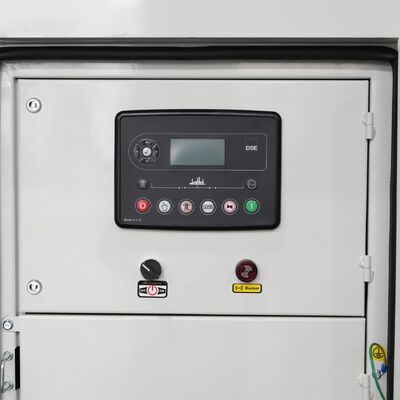

We support full customization and OEM services with design drawings. All units come with standard DSE 6120 controller (engine, generator, and controller are optional).
Applications
  • Industrial Use: Backup power for factories ensuring continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty & Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). We provide free spare parts during warranty for production quality issues. Professional after-sales service team available 24/7 for technical support, maintenance, and repairs.
Why Choose BOBIG
  • Brand Reputation: Trusted SDEC engine brand with proven quality
  • Quality Assurance: Manufactured to international standards with rigorous inspections
  • Customization Options: Tailored solutions for specific requirements
