Inicio /Productos/Generador diesel Balduino/Intelligent diesel Generator BAUDOUIN 3 Phase 200kW 250KVA Inverter Open Type Silent diesel Electric Power Make Generator 200kw

Intelligent diesel Generator BAUDOUIN 3 Phase 200kW 250KVA Inverter Open Type Silent diesel Electric Power Make Generator 200kw

Intelligent diesel Generator BAUDOUIN 3 Phase 200kW 250KVA Inverter Open Type Silent diesel Electric Power Make Generator 200kw
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Garantía: Personalizado
Tipo: Silencioso (súper silencioso) o abierto, silencioso, etc., en línea/6 cilindros/4 tiempos/4 válvulas

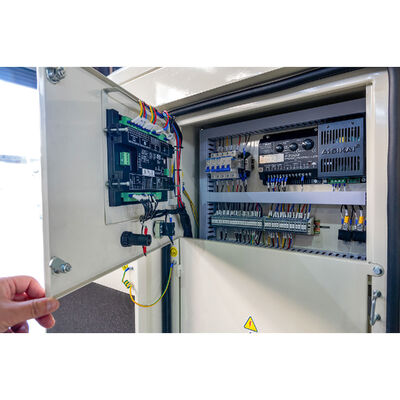

Panel de control: Pantalla digital LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Tipo de salida: CA monofásica/trifásica
Controlador: Mar profundo/Smartgen/etc.
solicitud: Banco industrial, etc.
Tensión nominal: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternador: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford o Newtec, Engga
Nombre del producto: Generador diésel, generador de 200kW, impulsado por el generador diésel BAUDOUIN, generador diésel d
Color: Requisito de los clientes
Frecuencia: 50/60Hz
Potencia nominal: 200kW
Motor: BAUDOUIN original
método de enfriamiento: Sistema de refrigeración por agua
Resaltar:

Baudouin 200kW diesel generator

,

3 phase silent diesel generator

,

inverter open type power generator
Información básica
Lugar de origen: Porcelana
Nombre de la marca: BAUDOUIN
Certificación: CE
Número de modelo: 6M16G250/5
Pago y Envío Términos
Detalles de empaquetado: madera contrachapada
Tiempo de entrega: 30 dias
Capacidad de la fuente: 500 unidades por mes
Descripción de producto
Intelligent Diesel Generator BAUDOUIN 3 Phase 200kW 250KVA
Product Overview

Our 200kW 250KVA BOBIG BAUDOUIN diesel generator (Model: 6M16G250/5) is designed to provide reliable power for a wide range of applications. Backed by the renowned BAUDOUIN brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance

Rated Power: 200kW (250KVA) with stable prime power output and standard 50Hz frequency suitable for most electrical equipment.

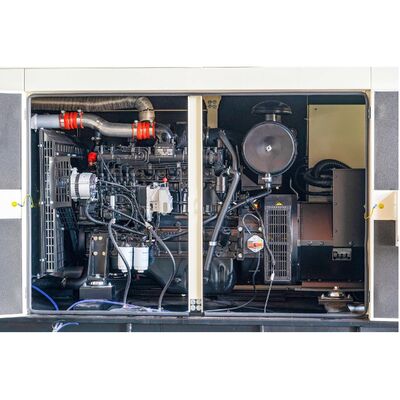

Engine Excellence

Powered by 6M16G250/5 BAUDOUIN engine with high torque, fuel efficiency, low emissions, and smooth operation at 1500 RPM.

Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 250 275
Power Rating (kW) 200 220
Frequency (Hz) 50
Engine Model 6M16G250/5
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Engine Specifications
Engine Model & Manufacturer 6M16G250/5 (BAUDOUIN)
Number of Cylinders / Valves 6/12
Cylinders Arrangement In line
Bore x Stroke (mm) 126 x 130
Displacement (L) 9.726
Cooling System Liquid (water + 50% antifreeze)
Aspiration Turbocharged and Aftercooled
Alternator Details
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274H
Rated Power 200kW/250kVA
Protection Grade IP23
Insulation Class H class
Voltage Regulation, Steady State ≤±1%
Dimensions and Weight
Model Type Length (mm) Width (mm) Height (mm) Tank Capacity (L)
Open Type (BBDA275) 2700 1050 1625 460

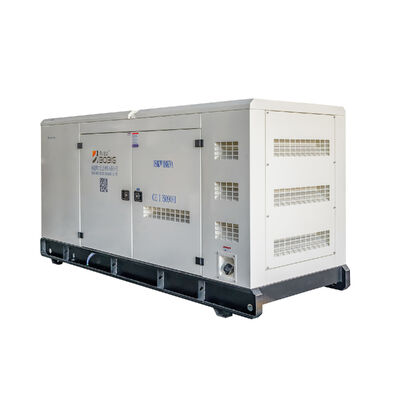

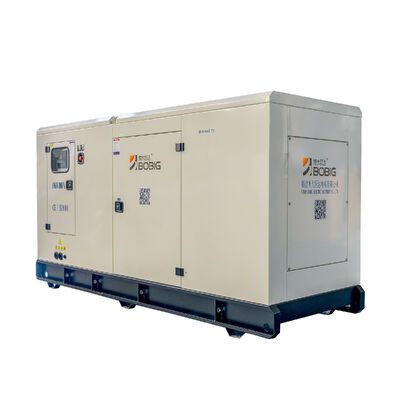

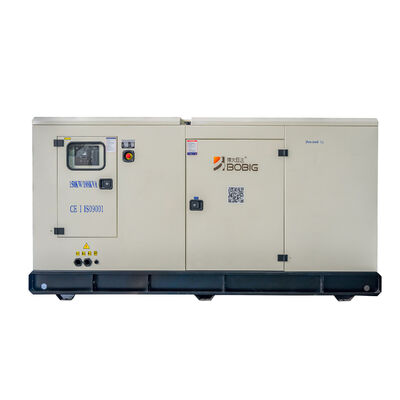

Silent Type (BBDA275S) 3900 1220 1900 460
Environmental Adaptability
  • Ambient Temperature: +5°C to +40°C
  • Altitude: Up to 1000m (custom solutions available for different conditions)
Compliance Standards

Our generator complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications, guaranteeing quality, safety, and reliability.

Customization Available: We support customization and OEM services with design drawings. All units come with standard DSE 6120 controller (engine, generator, and controller are optional).
Intelligent diesel Generator BAUDOUIN 3 Phase 200kW 250KVA Inverter Open Type Silent diesel Electric Power Make Generator 200kw 0
Packaging & Shipping

Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.

Certifications
Intelligent diesel Generator BAUDOUIN 3 Phase 200kW 250KVA Inverter Open Type Silent diesel Electric Power Make Generator 200kw 1 Intelligent diesel Generator BAUDOUIN 3 Phase 200kW 250KVA Inverter Open Type Silent diesel Electric Power Make Generator 200kw 2
Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Power for offices, malls, hotels maintaining essential services
  • Residential Areas: Reliable power for communities with unstable grids
Warranty & Service

One year or 1000 hours warranty (whichever comes first). Professional 24/7 after-sales support with technical assistance, maintenance, and repair services.

Why Choose Us
  • Brand Reputation: BAUDOUIN is a trusted brand with long history
  • Quality Assurance: Strict international standards and rigorous inspections
  • Customization Options: Tailored solutions for specific requirements
