YANGDONG YND490D 16kw 20kva 18kw 22kva 3 Phase Water Cooled Diesel Generator Silent Type

1
MOQ
USD 2000-3000
Precio
YANGDONG YND490D 16kw 20kva 18kw 22kva 3 Phase Water Cooled Diesel Generator Silent Type
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Resaltar:

3 phase silent diesel generator

,

water cooled diesel generator 16kw

,

20kva silent diesel generator
Información básica
Lugar de origen: Porcelana
Nombre de la marca: YANGDONG
Número de modelo: Yangdong YND490D
Pago y Envío Términos
Detalles de empaquetado: 190*85*105cm
Tiempo de entrega: 30 DÍAS LABORALES
Condiciones de pago: LC, T/T, D/P
Capacidad de la fuente: 500 unidades por mes
Descripción de producto
YANGDONG YND490D 16kW/20kVA 18kW/22kVA 3 Phase Water Cooled Diesel Generator Silent Type
The YANGDONG YND490D Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YANGDONG engine, this 16kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.

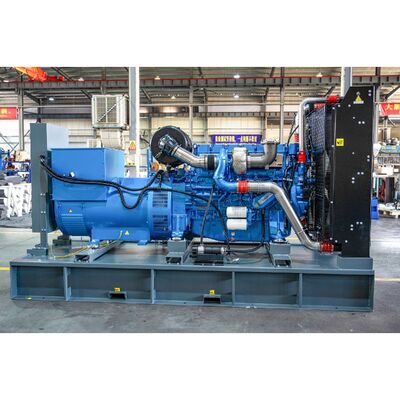

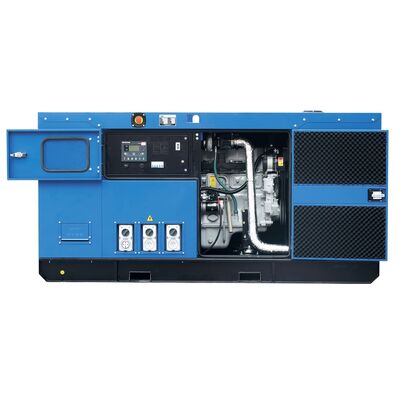

YANGDONG YND490D 16kw 20kva 18kw 22kva 3 Phase Water Cooled Diesel Generator Silent Type 0 YANGDONG YND490D 16kw 20kva 18kw 22kva 3 Phase Water Cooled Diesel Generator Silent Type 1
Power Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 20 22
Power Rating (kW) 16 18
Frequency (Hz) 50
Engine Model YND490D
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
According to customer requirements
Power Rating Definitions
PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BY22 (Open Type) BY22S (Silent Type)
Length (L) mm 1350 1900
Width (W) mm 610 850
Height (H) mm 1160 1050
Tank Capacity (L) 37 37
Engine Specifications
Engine Model & Manufacturer YND490D (YANGDONG)
No. of Cylinders 4
Injection Type Direct
Aspiration Natural
Configuration Vertical
Bore 90 mm
Stroke 95 mm
Compression Ratio 18
Displacement 2.417 L
Dry Engine Weight 200 kg
Dimension (L×W×H) 820×590×638
The Flywheel Shell Interface SAE4
Governed Engine Speed 1500
Continuous Power without Fans 20
Standby Power 22
Number of Flywheel Teeth 115
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184ES
Alternator Rated Power 16kW/20kVA
Rated Voltage (V) 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Control Panel - DSE 6120

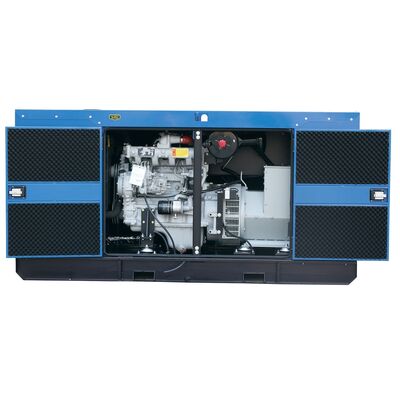

YANGDONG YND490D 16kw 20kva 18kw 22kva 3 Phase Water Cooled Diesel Generator Silent Type 2
Auto start and auto mains failure control module (Alternator frequency & CAN speed sensing)
Key Benefits
  • Automatically transfers between mains (utility) and generator for convenience
  • Hours counter provides accurate information for monitoring and maintenance
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters monitored & displayed simultaneously for full visibility
  • Configurable to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions for specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Real time clock
  • Manual and automatic fuel pump control
  • IP65 rating (with optional gasket)
Available Options
Engine
  • Water Jacket Preheater
  • Oil Preheater
  • Oil manual pump
Alternator
  • PMG excitation
  • Space heater
  • Winding temperature measuring
Fuel System
  • 12 / 24 hour base tank
  • Bunded fuel tank
  • External fuel tank
  • Automatic fuel feeding
  • Switch between external tank and base tank (three-way valve)
Generating Set
  • Deepsea, ComAp, Smartgen etc. controller
  • Trailer
  • Tools with the machine
YANGDONG YND490D 16kw 20kva 18kw 22kva 3 Phase Water Cooled Diesel Generator Silent Type 3 YANGDONG YND490D 16kw 20kva 18kw 22kva 3 Phase Water Cooled Diesel Generator Silent Type 4
