High-power YANGDONG Generator 15kW 50/60Hz 400V Three-phase diesel Generator Set, Ultra-quiet diesel Generator

1
MOQ
USD 500-1860
Precio
High-power YANGDONG Generator 15kW 50/60Hz 400V Three-phase diesel Generator Set, Ultra-quiet diesel Generator
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Resaltar:

15kW silent diesel generator

,

three-phase diesel generator set

,

ultra-quiet 400V generator
Información básica
Place of Origin: China
Nombre de la marca: YANGDONG
Model Number: YANGDONG YND485D
Pago y Envío Términos
Packaging Details: 190*85*105cm
Delivery Time: 30 work days
Payment Terms: L/C, T/T, D/P
Supply Ability: 500PCS Per Month
Descripción de producto
High-power YANGDONG Generator 15kW 50/60Hz 400V Three-phase Diesel Generator Set
Product Overview

The YANGDONG YND485D Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YANGDONG engine, this 15kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.

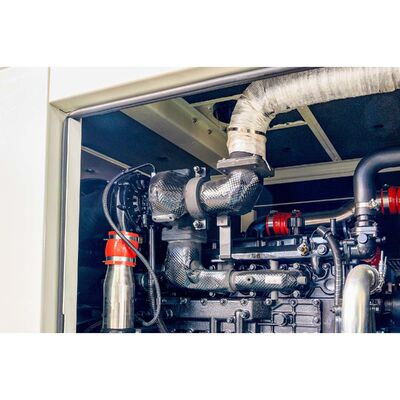

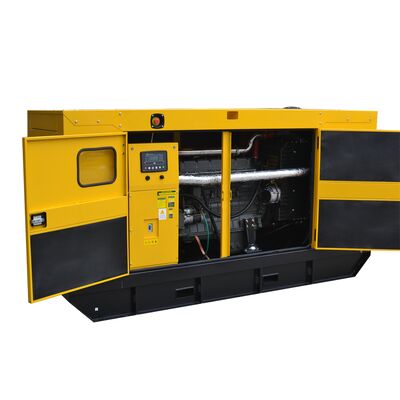

High-power YANGDONG Generator 15kW 50/60Hz 400V Three-phase diesel Generator Set, Ultra-quiet diesel Generator 0 High-power YANGDONG Generator 15kW 50/60Hz 400V Three-phase diesel Generator Set, Ultra-quiet diesel Generator 1
Power Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 19 21
Power Rating (kW) 15 17
Frequency (Hz) 50
Engine Model YND485D
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97; includes 10% overload capability for 1 hour within 12-hour operation.
ESP (Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available.
Dimensions and Weight
Model BY21 (Open Type) BY21S (Silent Type)
Length (L) mm 1350 1900
Width (W) mm 610 850
Height (H) mm 1160 1050
Tank Capacity (L) 35 35
Engine Specifications
Engine Model & Manufacturer YND485D (YANGDONG)
Number of Cylinders 4
Injection Type Direct
Aspiration Natural
Configuration Vertical
Bore 85 mm
Stroke 95 mm
Compression Ratio 18
Displacement 2.156 L
Dry Engine Weight 200 kg
Dimensions (L×W×H) 820×590×638 mm
Flywheel Shell Interface SAE4
Governed Engine Speed 1500 RPM
Continuous Power without Fans 17 kW
Standby Power 19 kW
Number of Flywheel Teeth 115
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184ES
Alternator Rated Power 15kW/19kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Control Panel - DSE 6120

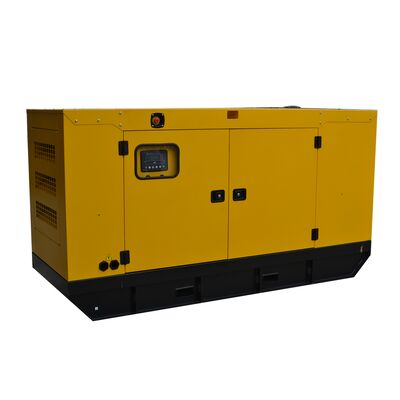

High-power YANGDONG Generator 15kW 50/60Hz 400V Three-phase diesel Generator Set, Ultra-quiet diesel Generator 2

Auto start and auto mains failure control module (Alternator frequency & CAN speed sensing)

Key Benefits
  • Automatically transfers between mains (utility) and generator for convenience
  • Hours counter provides accurate information for monitoring and maintenance
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters monitored & displayed simultaneously for full visibility
  • Configurable to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions for specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Real time clock
  • Manual and automatic fuel pump control
  • IP65 rating (with optional gasket)
Available Options
Engine
  • Water Jacket Preheater
  • Oil Preheater
  • Oil manual pump
Alternator
  • PMG excitation
  • Space heater
  • Winding temperature measuring
Fuel System
  • 12 / 24 hour base tank
  • Bunded fuel tank
  • External fuel tank
  • Automatic fuel feeding
  • Switch between external tank and base tank (three-way valve)
Generating Set
  • Deepsea, ComAp, Smartgen etc. controller
  • Trailer
  • Tools with the machine
