Inicio /Productos/Generador diesel silencioso/Factory-direct Sale of Water-cooled diesel Generator Sets 350kW 438KVA YTO Engine Silent or Open Type Customizable Appearance.

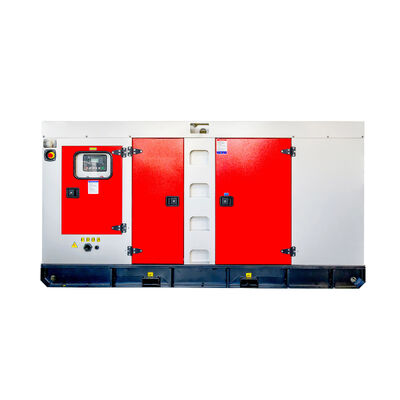

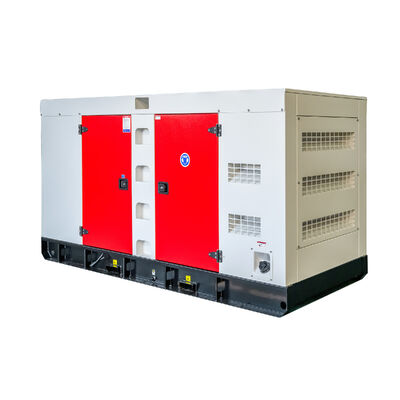

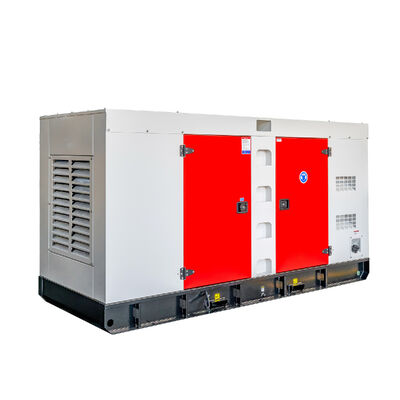

Factory-direct Sale of Water-cooled diesel Generator Sets 350kW 438KVA YTO Engine Silent or Open Type Customizable Appearance.

Factory-direct Sale of Water-cooled diesel Generator Sets 350kW 438KVA YTO Engine Silent or Open Type Customizable Appearance.
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Toldo: Personalizado
Garantía: 12 horas Months/1000
Tipo: Silencioso (silencioso estupendo) o abierto, silencioso, etc, In-line/6-Cylinder/4-Stroke/4-Valve/19

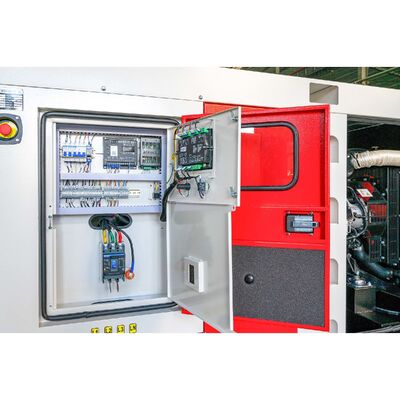

Panel de control: Indicador digital del LCD, de alta mar, ComAp, de alta mar/ComAp/Harsen/Smartgen 6110, Smartgen
Tipo de salida: CA sola/trifásica
Controlador: De alta mar/Smartgen/etc
Aplicación: Banco etc de Indursty
Tensión nominal: 400/230V, 110-480V, 220V/380V, 110V/240V, 380V
ALTERNADOR: Maratón, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford o Newtec, Engga
Nombre del producto: Generador diésel, generador de 438KVA, impulsado por el generador diésel YTO, generador diésel de po
Color: Requisito de los clientes
Frecuencia: 50/60Hz
potencia nominal: 438 kVA
motor: YTO originales
Método de enfriamiento: Sistema de refrigeración por agua
Resaltar:

350kW water-cooled diesel generator

,

silent diesel generator set

,

customizable YTO engine generator
Información básica
Lugar de origen: Porcelana
Nombre de la marca: YTO
Certificación: CE
Número de modelo: YM6S9LF-DA
Pago y Envío Términos
Detalles de empaquetado: Madera contrachapada
Tiempo de entrega: 30 dias
Capacidad de la fuente: 500 piezas por mes
Descripción de producto
Factory-direct Sale of Water-cooled Diesel Generator Sets 350kW 438KVA YTO Engine
Silent or Open Type with Customizable Appearance
Product Overview
Our 350kW 438KVA BOBIG YTO diesel generator (Model: YM6S9LF-DA) is designed to provide reliable power for a wide range of applications. Backed by the YTO brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated at 350kW (438KVA) with stable prime power output and standard 50Hz frequency suitable for most electrical equipment.
Engine Excellence
Powered by YM6S9LF-DA YTO engine featuring high torque, fuel efficiency, low emissions, and smooth operation at 1500 RPM.
Technical Specifications
General Information
Specification Prime Power Standby Power
Rated Power (kVA) 438 481
Power Rating (kW) 350 385
Frequency (Hz) 50
Engine Model YM6S9LF-DA
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity ≥ 8 hours @ 75% load
Engine Details
Specification Details
Engine Model & Manufacturer YM6S9LF-DA (YTO)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle 4 stroke, compression ignition
Air Aspiration Turbocharged with air to air cooler
Cooling Medium Liquid
Bore 126 mm
Stroke 155 mm
Compression Ratio 17.0:1
Cubic Capacity 11.596 L
Dry Engine Weight 1100 kg
Alternator Specifications
Specification Details
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354C
Rated Power 350kW/438kVA
Rated Voltage 230V/400V
Protection Grade IP23
Insulation Class H class
Dimensions & Weight
Model BYT481 (Open) BYT481S (Silent)
Length (mm) 3600 4500
Width (mm) 1500 1810
Height (mm) 2460 2360
Tank Capacity (L) 805 805
Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Power for offices, malls, hotels, and security systems
  • Residential Areas: Reliable power for communities with unstable grids
Quality & Compliance
Our generator complies with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification.
Warranty & Service
One year or 1000 hours warranty (whichever comes first). Professional after-sales support available 24/7.
Company Information
We are an electrical machinery manufacturer with 10,000 square meters factory area, 160 employees, and ISO9000 Quality System Certification.
