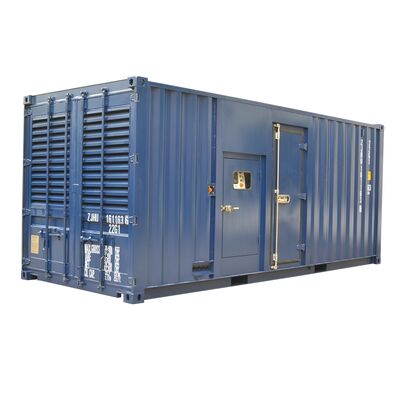

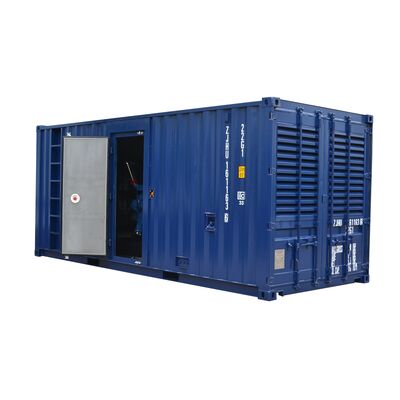

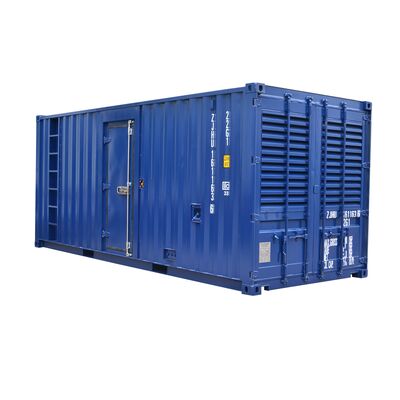

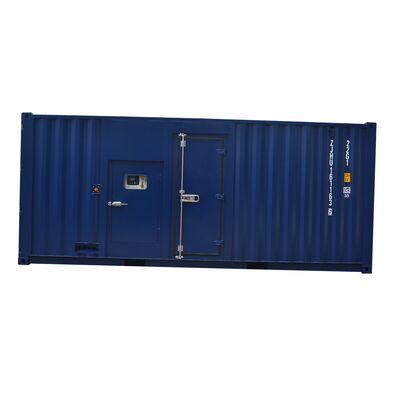

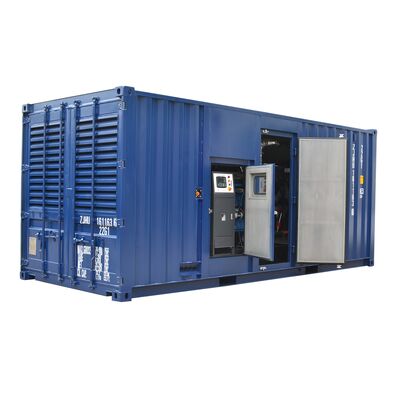

Intelligent Diesel Generator 1500kW 1875KVA Open Type Silent Diesel Electric Power Generator
Product Overview
Our 1500kW 1875KVA BOBIG BAUDOUIN diesel generator (Model: 16M33G2000/5) is designed to provide reliable power for a wide range of applications. Backed by the renowned BAUDOUIN brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: 1500kW (1875KVA) for various industrial, commercial, and residential applications. The prime power output is stable and efficient, ensuring continuous operation even under heavy loads. Frequency: Standard 50Hz operation suitable for most electrical equipment.
Engine Excellence
Powered by the 16M33G2000/5 BAUDOUIN engine, combining advanced technology and high-quality manufacturing. Known for high torque, fuel efficiency, and low emissions. Engine Speed: 1500 RPM for smooth, consistent power supply with minimal wear.
Technical Specifications
| General Information |
Prime Power |
Standby Power |
| Rated Power (kVA) |
1875 |
2063 |
| Power Rating (kW) |
1500 |
1650 |
| Frequency (Hz) |
50 |
| Engine Model |
16M33G2000/5 |
| Engine Speed (RPM) |
1500 |
| Phase |
3 |
| PF |
0.8 |
| Control System |
Digital |
| Rated Voltage (V) |
400/230 (According to customer requirements) |
Fuel Tank Capacity: ≥ 8h @ 75% load
PRP: Prime power available for unlimited annual hours in variable load applications (GB/T2820-97). 10% overload capability available for 1 hour within 12-hour operation.
ESP: Standby power rating for emergency power during utility interruptions. No overload, utility parallel or negotiated outage operation capability.
Engine Specifications
| Engine Model & Manufacturer |
16M33G2000/5 (BAUDOUIN) |
| Number of Cylinders / Valves |
16 / 64 |
| Cylinders Arrangement |
Vee |
| Bore x Stroke (mm) |
150 x 185 |
| Displacement (L) |
52.3 |
| Thermodynamic Cycle |
Diesel 4 stroke |
| Mean Piston Speed (m/s) |
9.25 |
| BMEP @ ESP (Bar) |
27.53 |
| Cooling System |
Liquid (water + 50% antifreeze) |
| Injection System |
Direct |
| Fuel System |
High Pressure Common Rail |
| Aspiration |
Turbocharged and Aftercooled |
| Compression Ratio |
15:1 |
| Flywheel Housing |
SAE 0 |
| Flywheel |
18" |
| Number of Teeth on Flywheel Ring Gear |
194 |
| Inertia of Flywheel (kg•m²) |
7.2 |
| Inertia of Crankshaft (kg•m²) |
10.1 |
| Emission Standard |
N/A |
| Overall Dimensions with Radiator (L x W x H) (mm) |
3967 x 2237 x 2485 |
| Engine Dry Weight without Radiator (kg) |
5200 |
| Engine Dry Weight with Radiator (kg) |
6450 |
| Engine Wet Weight with Radiator (kg) |
7151 |
Alternator Specifications
| Alternator Brand |
BOBIG |
| Alternator Manufacturer |
FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model |
BW-454C |
| Alternator Rated Power |
1500kW/1875kVA |
| Rated Voltage (V) |
230V/400V |
| Rated Frequency |
50Hz |
| Connecting Type |
3 Phase and 4 W |
| Number of Bearing |
1 |
| Protection Grade |
IP23 |
| Altitude |
≤1000m |
| Exciter Type |
Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class |
H class |
| Telephone Influence Factor (TIF) |
≤50 |
| THF |
≤2% |
| Voltage Regulation, Steady State |
≤±1% |
| Transient State Voltage |
≤-15%~+20% |
Dimensions and Weight
| Model |
BBDA2063 (Open Type) |
BBDA2063S (Silent Type) |
| Length (L) mm |
5200 |
** |
| Width (W) mm |
2250 |
** |
| Height (H) mm |
2550 |
** |
| Tank Capacity (L) |
3450 |
** |
Applications
- Industrial Use: Backup power source for factories to ensure continuous production during outages
- Commercial Buildings: Office buildings, shopping malls, and hotels for essential services
- Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). During warranty, we provide free replacement of parts damaged due to production or material quality. After expiration, we offer cost-effective spare parts and maintenance services.
Why Choose Us
- Brand Reputation: BAUDOUIN is a trusted brand with a long history of quality products
- Quality Assurance: Manufactured to international standards with rigorous quality inspections
- Customization Options: Tailored solutions based on specific customer requirements
Company Information
We are an electrical machinery manufacturer specializing in technological research, production, and sales. With a 10,000 square meter factory area including 1,000sqm standard construction, 160 employees (20 technicians), and products including gasoline generators, diesel generators (5-2000kVA), gas generators, and pumps.
Factory & Facilities
Frequently Asked Questions
What is your MOQ, payment method, delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery, or 100% L/C, trade assurance, PayPal, Western Union. Delivery: 10-15 working days after deposit receipt.
Which port do you often use when exporting?
Fuzhou port, Fujian province or as customer request.
Is there any spare parts you can provide for maintenance?
We provide regular engine filters (air, water, fuel, oil) for customer self-maintenance.
Can you offer parts if we need them?
Yes, we can provide parts at any time (not limited to warranty period), typically shipped within 3-5 days.
Can voltage, frequency, tank capacity, phase and color be customized?
Yes, all specifications can be customized according to your requirements.
What is your distribution policy?
We welcome distributors worldwide and can issue authority certificates and sign agreements accordingly.
