Inicio /Productos/Generador diesel de Fawde/24kW Silent Diesel Generator with Digital Panel Water Cooled System Auto Start High Quality and Factory Cheap Price 30KVA

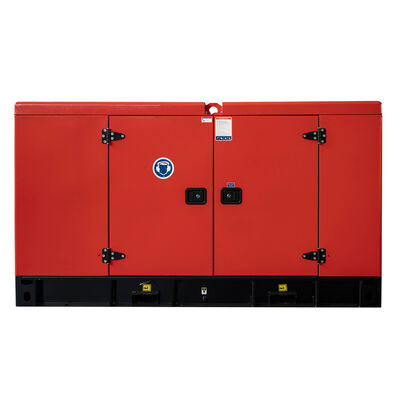

24kW Silent Diesel Generator with Digital Panel Water Cooled System Auto Start High Quality and Factory Cheap Price 30KVA

24kW Silent Diesel Generator with Digital Panel Water Cooled System Auto Start High Quality and Factory Cheap Price 30KVA
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Toldo: Personalizado
Garantía: 12 horas Months/1000
Tipo: Silencioso (silencioso estupendo) o abierto, silencioso, etc, In-line/6-Cylinder/4-Stroke/4-Valve/19
Panel de control: Indicador digital del LCD, de alta mar, ComAp, de alta mar/ComAp/Harsen/Smartgen 6110, Smartgen
Tipo de salida: CA sola/trifásica
Controlador: De alta mar/Smartgen/etc
Solicitud: Banco etc de Indursty
Tensión nominal: 400/230V, 110-480V, 220V/380V, 110V/240V, 380V
ALTERNADOR: Maratón, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford o Newtec, Engga
Nombre del producto: Generador diésel, generador de 24kW, impulsado por el generador diésel FAWDE, generador diésel de po
Color: Requisito de los clientes
Frecuencia: 50/60Hz
Potencia nominal: 30kva
Motor: Fawde original
Método de enfriamiento: Sistema de refrigeración por agua
Resaltar:

24kW silent diesel generator

,

water cooled diesel generator

,

30KVA auto start generator
Información básica
Lugar de origen: Porcelana
Nombre de la marca: FAWDE
Certificación: CE
Número de modelo: 4DW92 - 39D
Pago y Envío Términos
Detalles de empaquetado: Madera contrachapada
Tiempo de entrega: 30 dias
Capacidad de la fuente: 500 piezas por mes
Descripción de producto

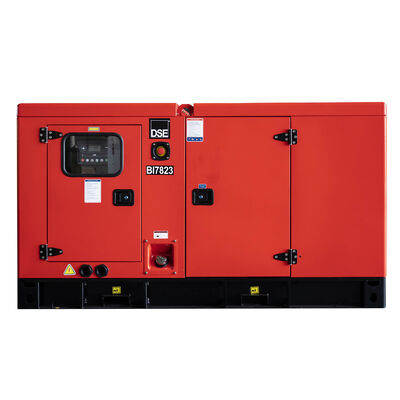

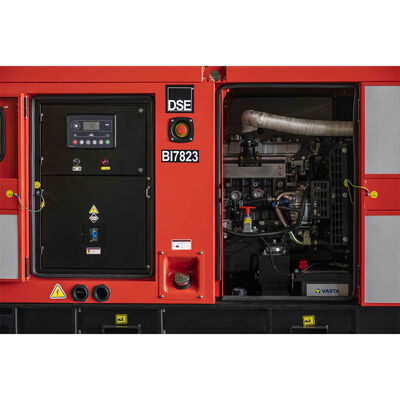

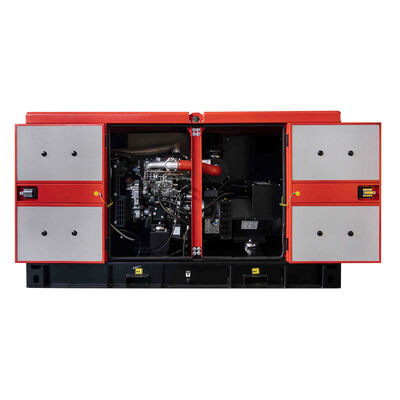

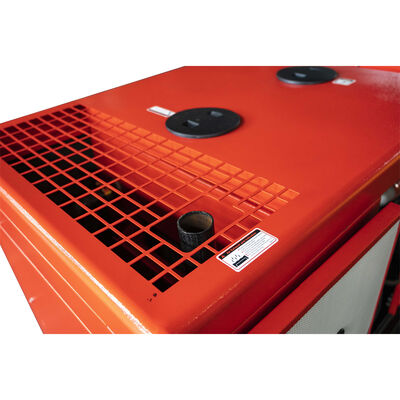

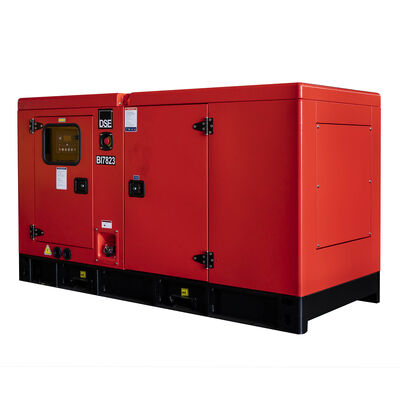

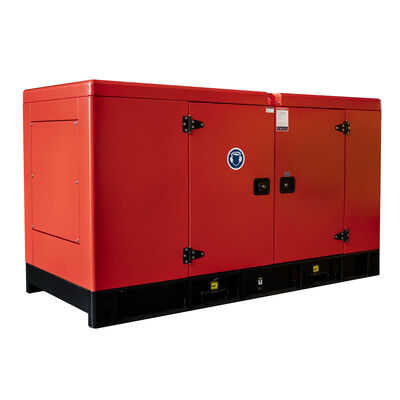

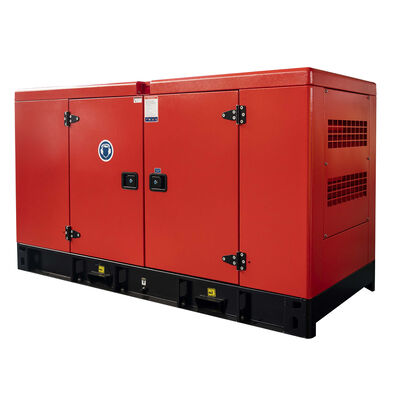

24kW Silent Diesel Generator with Digital Panel Water Cooled System
Product Overview
Our 24kW 30KVA BOBIG FAWDE diesel generator (Model: 4DW92-39D) is designed to provide reliable power for a wide range of applications. Backed by the FAWDE brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: 24kW (30KVA) with stable and efficient prime power output ensuring continuous operation even under heavy loads. Frequency: 50Hz standard frequency suitable for most electrical equipment.
Engine Excellence
Powered by the 4DW92-39D FAWDE engine with high torque, fuel efficiency, and low emissions. Running at 1500 RPM for smooth and consistent power supply while minimizing wear and tear.
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 30 33
Power Rating (kW) 24 26
Frequency (Hz) 50
Engine Model 4DW92-39D-HMS20W
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

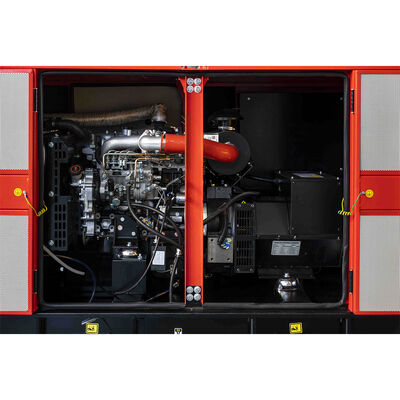

Engine Specifications
Engine Model & Manufacturer 4DW92-39D-HMS20W (FAWDE)
Engine Model 4DW92-39D
No. of Cylinders 4
Cylinder Arrangement In-line
Cycle 4 stroke
Aspiration Turbocharged
Cooling System Water-cooled
Bore 90 mm
Stroke 100 mm
Compression Ratio 17:1
Displacement 2.54 L
Dry Engine Weight 250 kg
Dimension (L*W*H) 700*590*680
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184G
Alternator Rated Power 24kw/30kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
  • Residential Areas: Reliable power for communities in areas with unstable power grids
Why Choose Us
  • Brand Reputation: Trusted brand with long history of producing high-quality products
  • Quality Assurance: Manufactured in strict accordance with international standards with rigorous quality inspections
  • Customization Options: Customized solutions based on your specific requirements
Warranty & Service
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by production or raw material quality issues.
